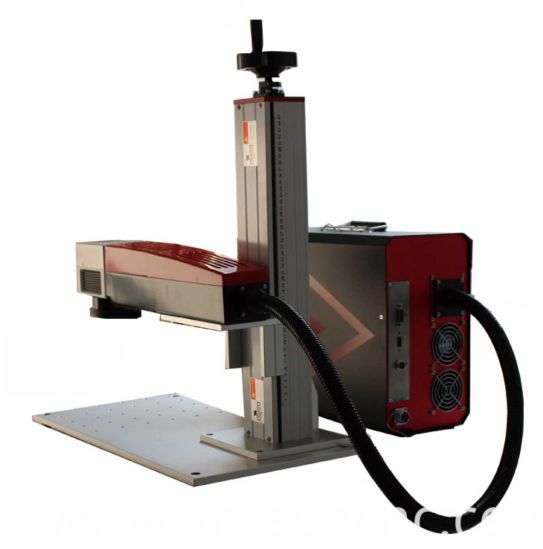

BODOR BML10FP / BML20FP
BODOR BML-F series fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.
The quality of laser beam is very good(near to the limit of diffraction, exporting TEM00 fundamental transverse mode, M2 near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker), Therefore it is very suitable for delicate marking.
With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%, BML-F can achieve high speed marking,and control the depth and shape of the facula .
The processing speed of BML-F is 2-3 times than the traditional marking machine.
Air cooling, the size of the machine is very small.
Long life, ultra-low power consumption, the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw!
Technical Specifications :
Laser Power - 10W / 20W
Laser Wavelength - 1064nm
Q-frequency - 20KHz~30KHz
Divergence - 0.3mard
Marking Range - 100 x 100mm( optional 200 x 200mm )
Minimum Line Width - 0.02mm
Minimum Character - 0.15mm
Marking Depth - 0 ~0.5mm
Engraving Line Speed - ≤7000mm/s
Repeatability Accuracy - ±0.001mm
Beam Quality - M2:1.2~1.8
Marking Format - Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batch Number,Serial Number,Frequency,etc.
Graphic Format Supported - bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage - 220V±10%/50Hz/4A
Unit Power - ＜0.5kw
Use of the Environment - Clean and Dust Free or Dust less
Working Condition:Humidity - 5%-75%，Free of Condensed Water
Laser Module Life - ＞100000 hours
